The most robust construction on the market. The jaw is massive. For smaller pipe diameters this can be reversed.

Delivery is made via a spindle, this allows an accurate grinding out without effort and under constant pressure.

The RS-2 has two grinding speeds, the first slow speed for grinding stainless steel, the second with 2800 r / min for grinding steel.

Use the slower speed when grinding stainless steel to prevent the tarnishing of the tube. A bluish discoloration is however can not entirely be prevent.

Our Tip: The best results and the least rework can be reached with our special high-performance belt of ceramic corundum with cooling multibond.

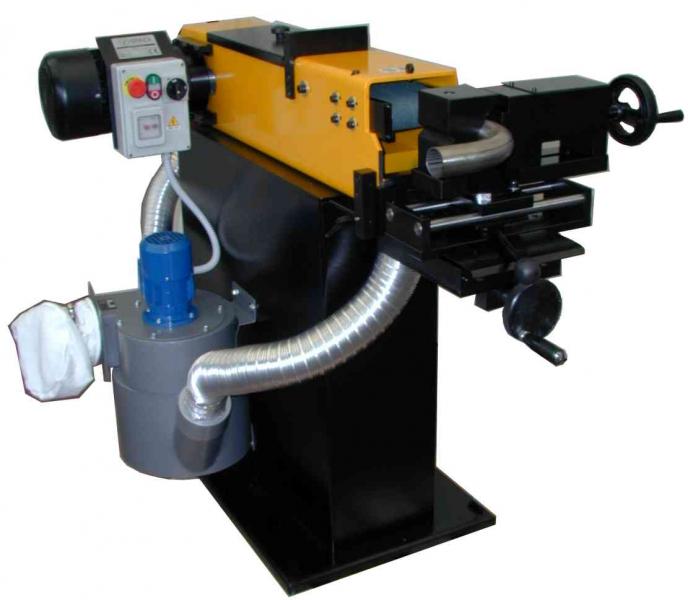

The figure shows a double extraction system. We recommend this to our customers, as the grinding sets a lot of metal dust free. However, the cost issue is often in the foreground, so we decided to offer this aspiration every now and then as a special offer.

Changing the belt by loosening the 2 screws with quick tension
general request
Use the desktop version of the website to request prices directly online.

Technical Specifications:

L x W x H (mm) 800 x 1500 x 1250
Power (KW) 3,0
Weight (kg) 211 kg
Speed 1400 U/min
2800 U/min
Grind out ø20-100x120
Grade of abrasive belts Grit Körnung 40
Körnung 60
possible Grind out angle ø50mm a 30°
ø80mm a 45°
ø100mm a 60°


The RS 2 is supplied with a basic package of accessories, including 3 contact rollers and a sanding belt. If required you can select, an addition, contact role. Do not forget the sanding belts.

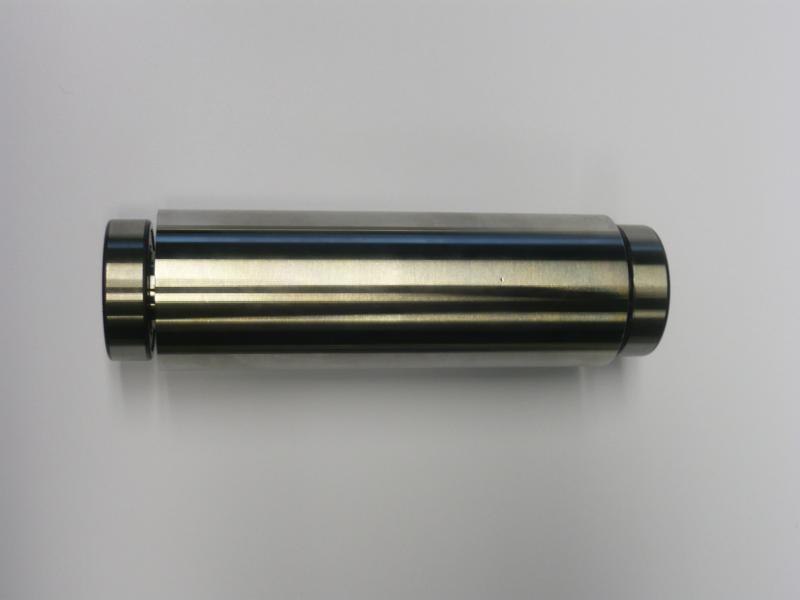

Contact Role

Contact role for Tube Notcher Type RS 2
incl. bearing for grinding
of tubes:
D = 20 mm to 100mm
Contact Role

double extraction system

double extraction system

double extraction system

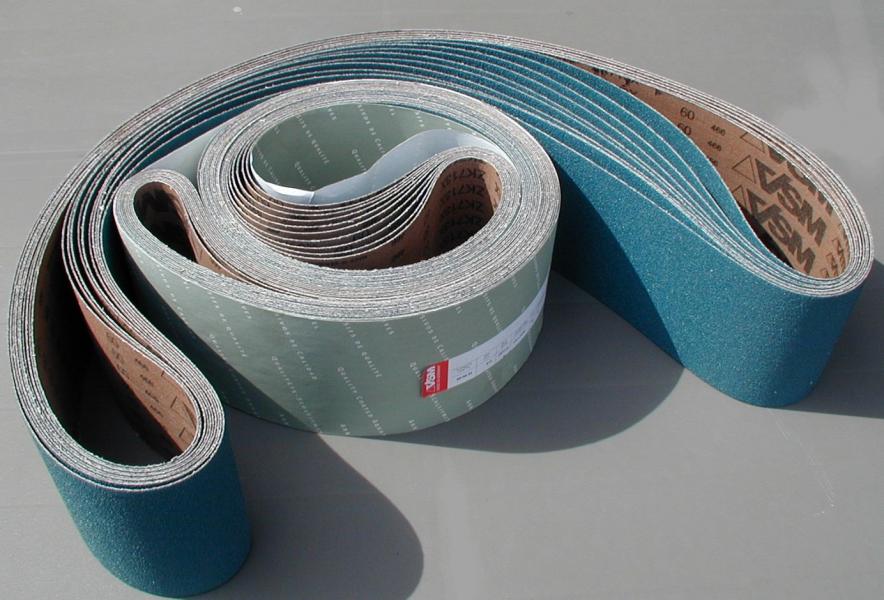

Sanding Belt 984F Ceramic Grain

Precision grinding belt with self Cubitron II ceramic grain guarantees the highest removal rate and service life. The uniformly shaped ceramic grain allows a unique
Sectional feeling in the machining process. The result is a cool cut without tarnishing and
a better surface finish. Up to 30% faster grinding processes at 3 times life on difficult to machine materials such as stainless steel, nickel alloys, chromium, titanium, aluminum etc.

3M984F 120x2000mm
Sanding Belt 984F Ceramic Grain

Sanding Belt K40, blue BCS811Y

Excellent grain adhesion, stable, highly tear-resistant polyester backing for particularly
high duty during rough grinding and deburring of steel and stainless steel.
High quality Zirkorund for highest aggressiveness over the lifetime
120 x 2000, blue
Sanding Belt K40, blue BCS811Y

configuration note

The RS 2 is supplied with a basic package of accessories, including 3 contact rollers and a sanding belt. If required you can select, an addition, contact role. Do not forget the sanding belts.

our tipp

Our tip! Our best sanding belts prevent the bluish starting at the pipe and have a significantly higher grinding performance.
