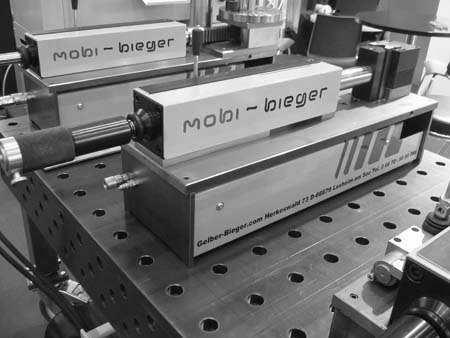

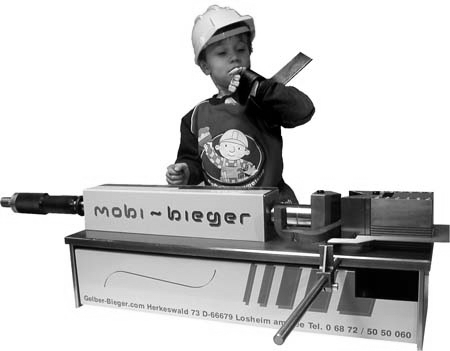

Handy with great capacity ... THE WLL MOST COMPACT HYDRAULIC BENDER...

The novel, hydraulic bender is lightweight and compact - and therefore mobile.

GELBER-BIEGER in Losheim developed a hydraulic horizontal bending press with only 80 kilogramms of weight, which will replace the angle bender. The "Mobi-bender" is easy to transport, for example, on the worksites, because it is only 80 cm long, 25 cm wide and high.

Despite its handy dimensions, the horizontal press suppresses ten tons. This corresponds to a bending capacity of 100 x 15 mm for mild steel. An easily adjustable stop allows bending accuracy in the 0.1 mm range. The hydraulic device is always mounted separately and connected with two quick release buckles with the press.

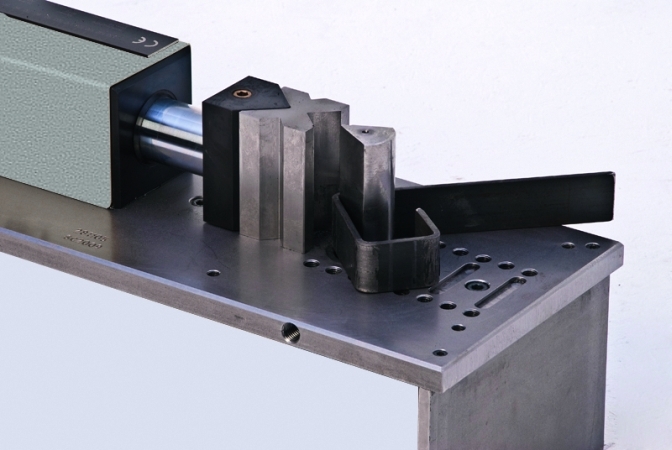

What makes the "Mobi-bender" so special  is that it pushes with the punch into the die. This is not the rule on small machines. In order to bend a closed part, the MOBI-bender has ability to replace the punch with the die.

If necessary mandrel can be angled. So a rectangle of 50 mm leg length can be bent.

general request
Use the desktop version of the website to request prices directly online.
Dimensions 1200 x 250 x 280
Weight(kg) 80
Motor Power (kW) 1,5
Bending force (t) 10
Tool height (mm) 100
Bending capacity (mm) flat iron: 100 x 15 ( mit V125)
round materials with turntable (mm) 16



Optional Folding Set 1

V = 80 mm
V = 100 mm
bending pin
distance block

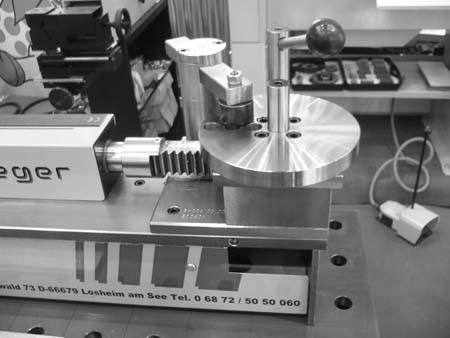

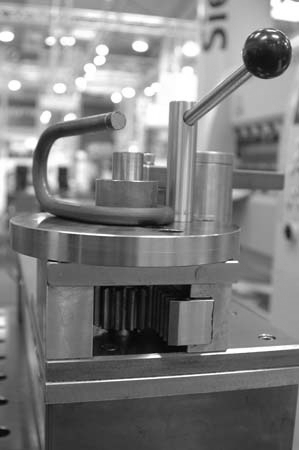

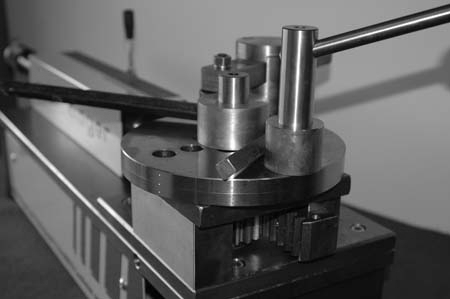

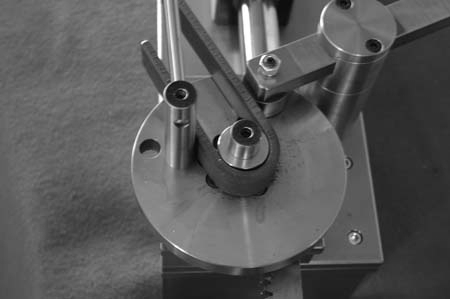

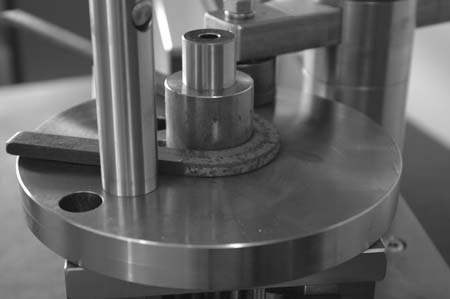

Turntable for Mobi-Bieger

Consisting of:
Rack and pinion drive
Standard turntable D = 210 mm
Center case-hardened 30 mm
With eccentric lever
Bridge with counter roller
set screws
Turntable for Mobi-Bieger

Rings for Turntable / Mobi-Bieger

Size 40 - 130 mm

Rings for Turntable / Mobi-Bieger

Flaring tool kit for expanding tubes

tubes: 27 mm to 60 mm

Maximum wall thickness: 2 mm
The advantage of this system is based on the principle of spreading, it is a simple adjustment.
The length of the flare and the flare diameter is adjustable.
The set consists of:
1 x Rohraufweit toolholder
1x flaring
1x mandrel
(for each pipe diameter or other wall thicknesses
will each need their own flaring,
the tool holder is only required once)
Flaring tool kit for expanding tubes

Tool for notching 48/60

for tubes having the following dimensions:
48 mm and 60 mm
The wall thickness should not exceed 3.6 mm.
Easy installation with the help of intermediate plates
Tool for notching 48/60

Tool for notching 27/33/42

for tubes having the following dimensions:
27 mm, 33 mm and 42 mm
The wall thickness should not exceed 3.6 mm.
Easy installation with the help of intermediate plates
Tool for notching 27/33/42

Tool for cutting

flat iron, square steel and round material with a max. height of 60 mm and a maximum thickness of 10 mm.
This version is not suitable for stainless steel.
Tool for cutting
